A hand plane from a flea market, an inheritance, or a forgotten shelf rarely arrives in working order. The rust, grime, and dull iron make it look like a hopeless project, but with careful steps you can bring it back to reliable service. This guide focuses on practical restoration—getting the tool to cut cleanly without chasing a mirror finish or erasing every patina. The goal is a functional plane you will actually use, not a collector’s piece that sits on a shelf.

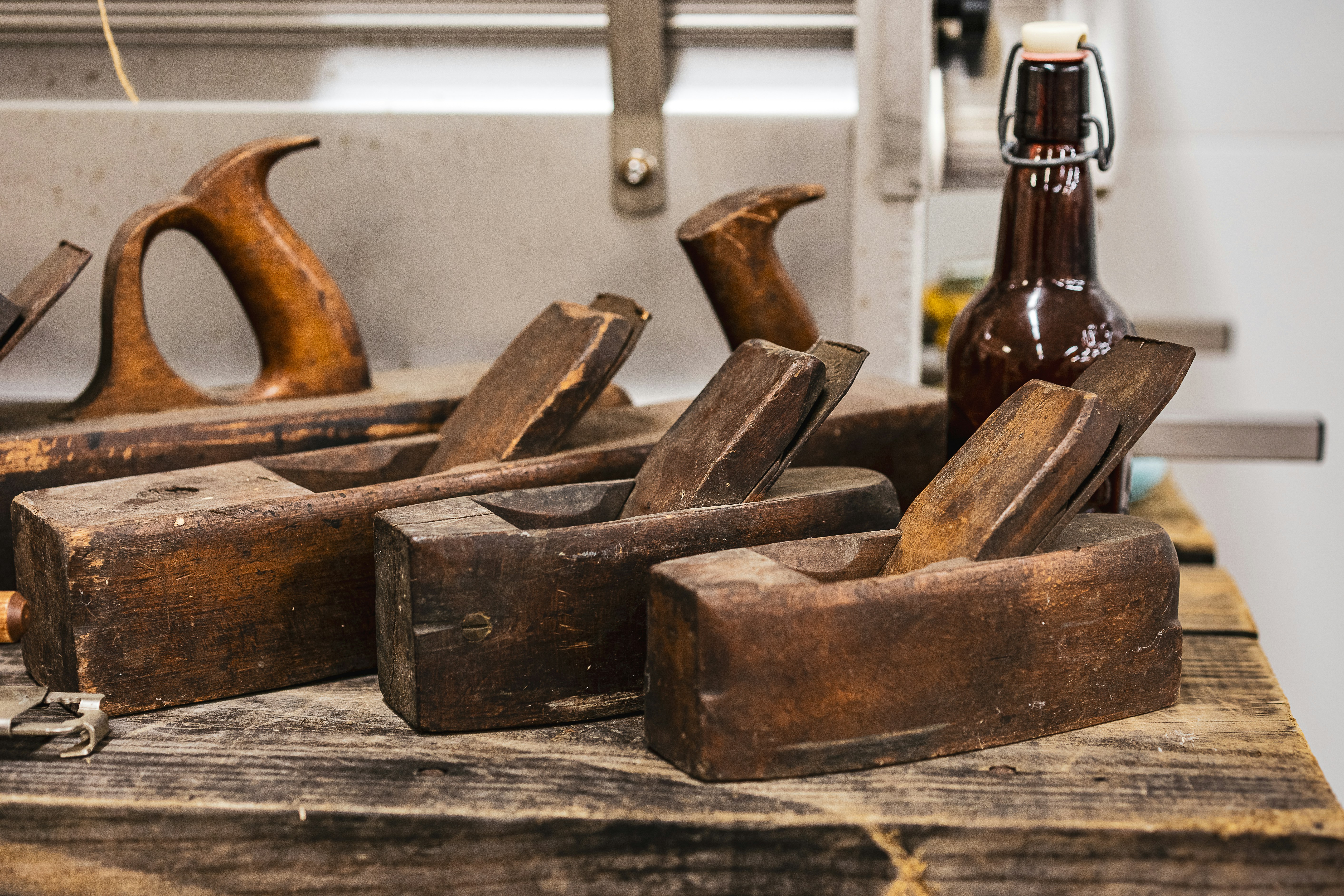

Photo by Iain on Unsplash.
Disassembly and Initial Cleaning
Begin by removing every adjustable component. Back out the lever cap screw, lift out the lever cap, then slide out the cutting iron and chip breaker together. Remove the depth adjustment nut and the lateral adjustment lever if they are separate pieces. Keep the screws and small parts in a container so nothing rolls away.
Scrape off heavy dirt and grease with a wooden spatula or a brass wire brush. Brass is softer than cast iron and will not gouge the surface. If the plane is caked with old varnish or paint, a light wipe with mineral spirits on a rag helps loosen it. Avoid soaking wooden handles or knobs in solvent; clean them with a damp cloth and dry immediately.
Rust Removal
Surface rust on the cast-iron body can be tackled without harsh abrasives that remove metal. For light to moderate rust, try a soak in Evaporust or a similar chelating rust remover. Submerge the bare metal parts (no wood) for a few hours or overnight, then rinse with water and dry thoroughly. The rust converts to a black residue that wipes away easily.
If the rust is heavier, use a combination of a brass brush and fine steel wool (grade 0000) with a light oil like mineral oil. Work in a well-ventilated area, and wipe frequently to see progress. For the sole, avoid coarse sandpaper or wire wheels that can dish the surface. A single-edge razor blade held nearly flat can scrape off stubborn rust without scratching the iron.
The plane’s wooden handles and knobs should not be soaked. Clean them with a soft cloth and a little boiled linseed oil if they are dry or cracked. Do not sand off the original finish unless it is peeling badly; a well-oiled patina is fine.
Flattening the Sole
A plane that does not sit flat cannot cut straight. After rust removal, inspect the sole with a straightedge. Place the straightedge along the length and diagonals; if you see daylight in the middle or at the ends, the sole needs flattening. This is the most critical step.
Lay a sheet of 120-grit wet/dry sandpaper on a flat surface—a thick piece of float glass or a granite tile works well. Stick the paper down with a spray adhesive or water. Rub the plane sole back and forth in figure-eight motions, applying even pressure. Check often with the straightedge. Once the high spots are uniformly covered with scratches, move to 220 grit and finally 400 grit for a smoother surface. Stop when the sole is flat; you do not need a mirror polish.
Be patient. Flattening a dished sole can take 15–30 minutes. Mark the sole with a pencil grid before you start; the pencil lines disappear where the metal contacts the paper, showing your progress.
Sharpening the Iron
A sharp iron makes the plane usable. Remove the chip breaker and clamp the iron in a honing guide for consistent bevel angle. Start with a coarse stone (800–1000 grit) to set the bevel, then progress to medium (3000–4000) and fine (6000–8000). If the edge is badly nicked, you may need to grind a fresh bevel on a bench grinder—go slowly and dip the iron in water frequently to avoid overheating the temper.
Sharpen until a burr forms on the back side, then flip the iron and flatten the back on the fine stone with a few strokes. Remove the burr with light strokes on the bevel side. Finish by stropping on leather with polishing compound.
The chip breaker should mate tightly to the back of the iron. Use a fine stone to flatten its mating edge if there is a gap. That gap invites shavings to jam.
Photo by Zachary Kadolph on Unsplash.
Lubrication and Reassembly
Before reassembly, oil all bearing surfaces lightly. Apply a thin coat of machine oil (or camellia oil) to the sides of the plane body where the frog slides, the depth adjustment screw threads, and the lever cap contact points. Do not over-oil; a drop on a finger is enough. Wipe any excess that could attract dust.
Reinstall the frog (the movable bed that holds the iron assembly). Adjust its position with the frog adjustment screw so that the mouth opening matches the cut you need—tight for fine shavings, wider for heavy stock removal. Tighten the frog screws evenly.
Insert the iron with the chip breaker attached, ensuring the chip breaker sits about 1/16 inch behind the cutting edge. Slide in the lever cap and tighten the lever cap screw only enough to hold the iron firmly. Over-tightening can crack the cap or distort the plane.
Final Adjustments and Test Cuts
Set the iron so that it protrudes slightly from the sole. Use the depth adjustment nut to bring the edge even with the sole across its width. Sight along the sole from the front—the iron should be parallel to the sole, not skewed. Adjust the lateral lever to level the edge left to right.
Take a test cut on a piece of softwood (e.g., pine or poplar). Adjust until you get a wispy, full-width shaving. A well-restored plane should produce smooth, continuous shavings without chatter.
Mistakes to Avoid
- Sanding the sole too aggressively with coarse grit can create a concave surface. Always use a flat reference surface and check often.
- Soaking wooden handles in water or solvent will swell and crack them. Clean them dry.
- Using steel wool on chrome or nickel-plated parts (like lever caps) leaves scratches. Use a soft cloth and metal polish instead.
- Forgetting to flatten the chip breaker’s mating edge leads to clogging.
- Over-oiling the wood parts rots the handles. Oil only the metal.
Photo by Bailey Alexander on Unsplash.
A Working Tool, Not a Museum Piece
A vintage hand plane that cuts true is a joy to use. The pitting on the sole, the dark patina on the handles, the faint scratches from decades of use—these are not flaws. They tell the tool’s history. Your restoration returns it to work, not to display. With careful attention to the steps above, that neglected plane will serve you for many more years.
